柔性接触传感模组 - 光莆股份，创造健康智慧的生活

柔性接触传感模组

所属分类：智能传感

产品卖点：

柔性接触传感模组是一种结合了电容传感技术和柔性材料设计的创新传感器。它主要由柔性基底和电容传感元件组成，当外界物体与传感模组接触时，会引起传感模组中电容值的变化，通过测量这个变化量，可以准确地感知到外界接触的位置、压力等信息，从而实现对外界接触的精确感知和测量。

» 产品特征

• 保持自动校正，无需外部干预

• 非接触式感应，适用各种不同物体

• 耐高温3M背胶，灵活安装，适用于各种不同形状的容器

• 可根据客户需求调整灵敏度

产品详情

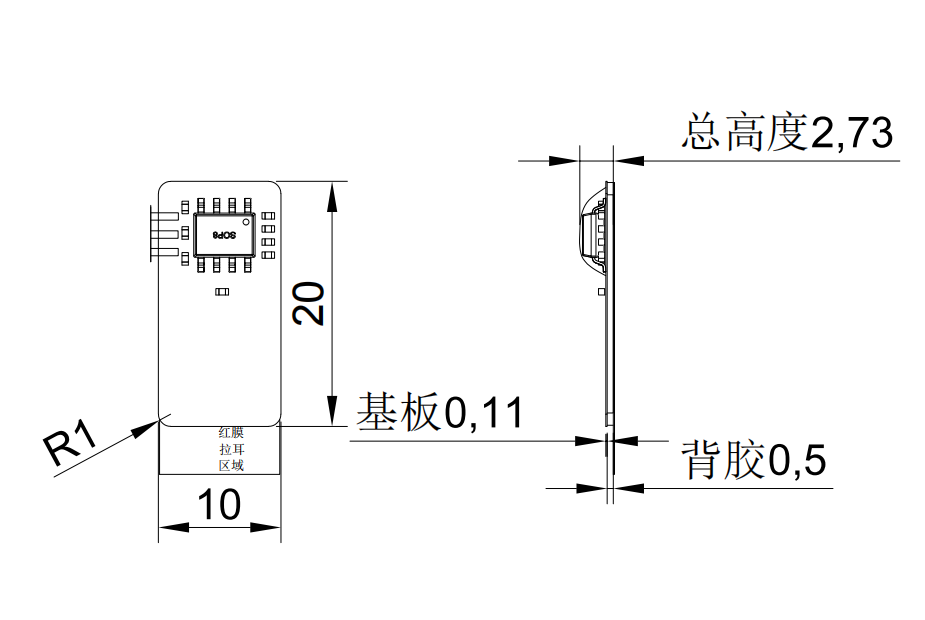

» 规格参数

工作电压	DC 3.3V（2.5V-6V）
工作电流	0.47mA
输出方式	高低电平
感应介质厚度	8.5mm（可定制）
感应方式	被动式
工作环境	-5℃~70℃ ,0%RH~85%RH

» 应用场景

• 替代机械开关，门禁按键，灯控开关

• 密封键盘面板

• 马桶着座感应器

• 洗地机清水箱液体检测

• 净水器设备水箱液位检测应用场景.png
